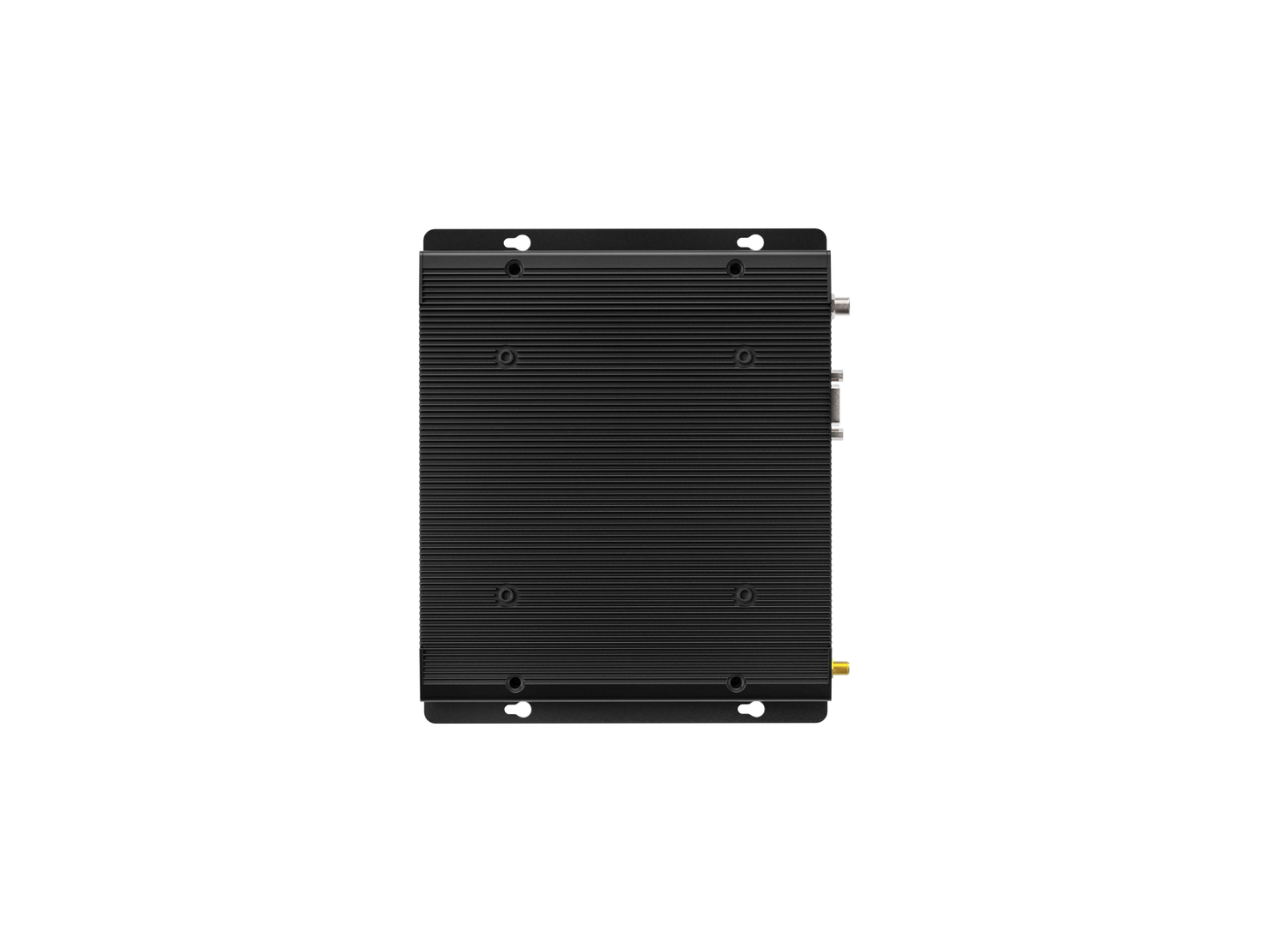

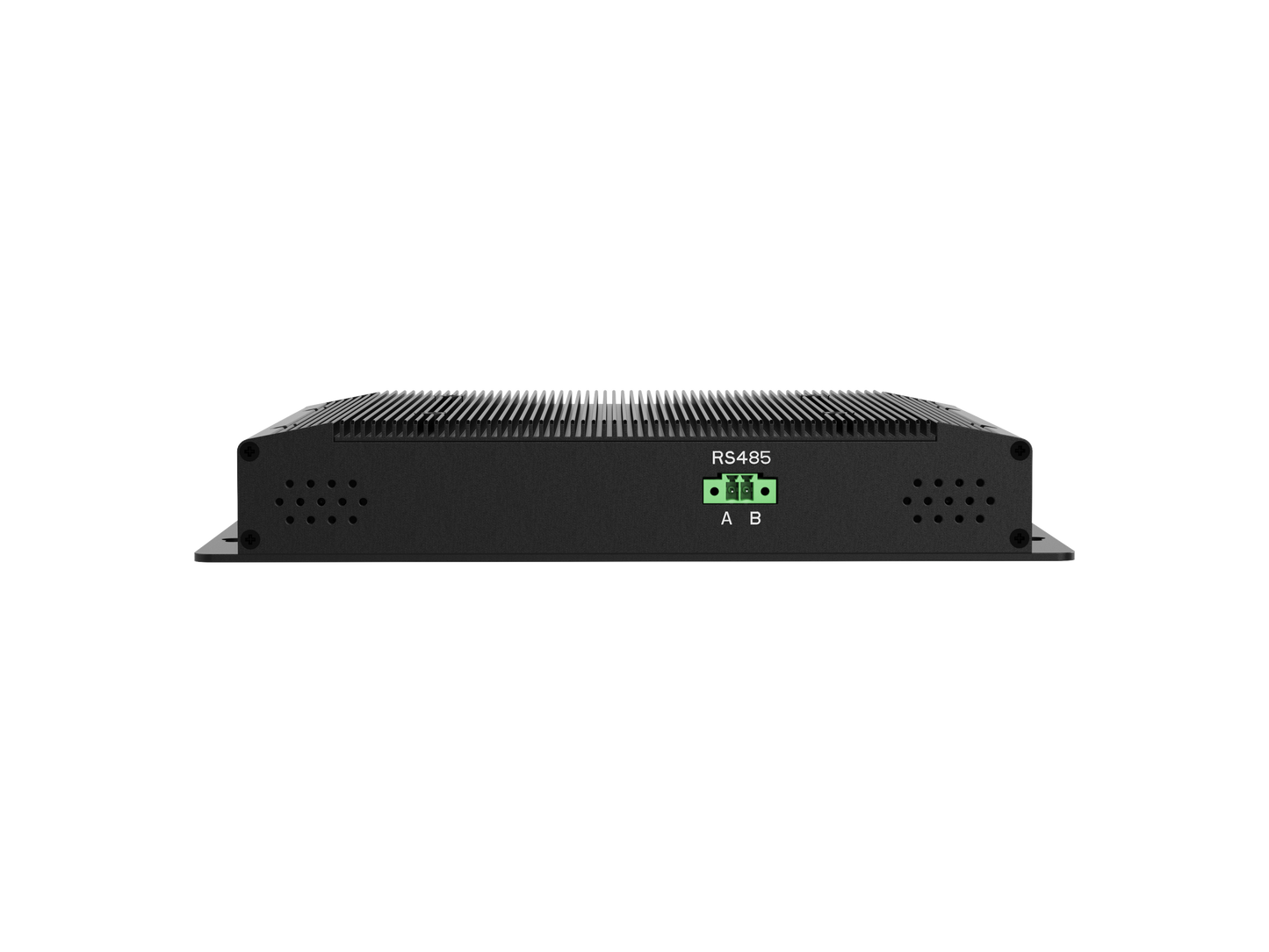

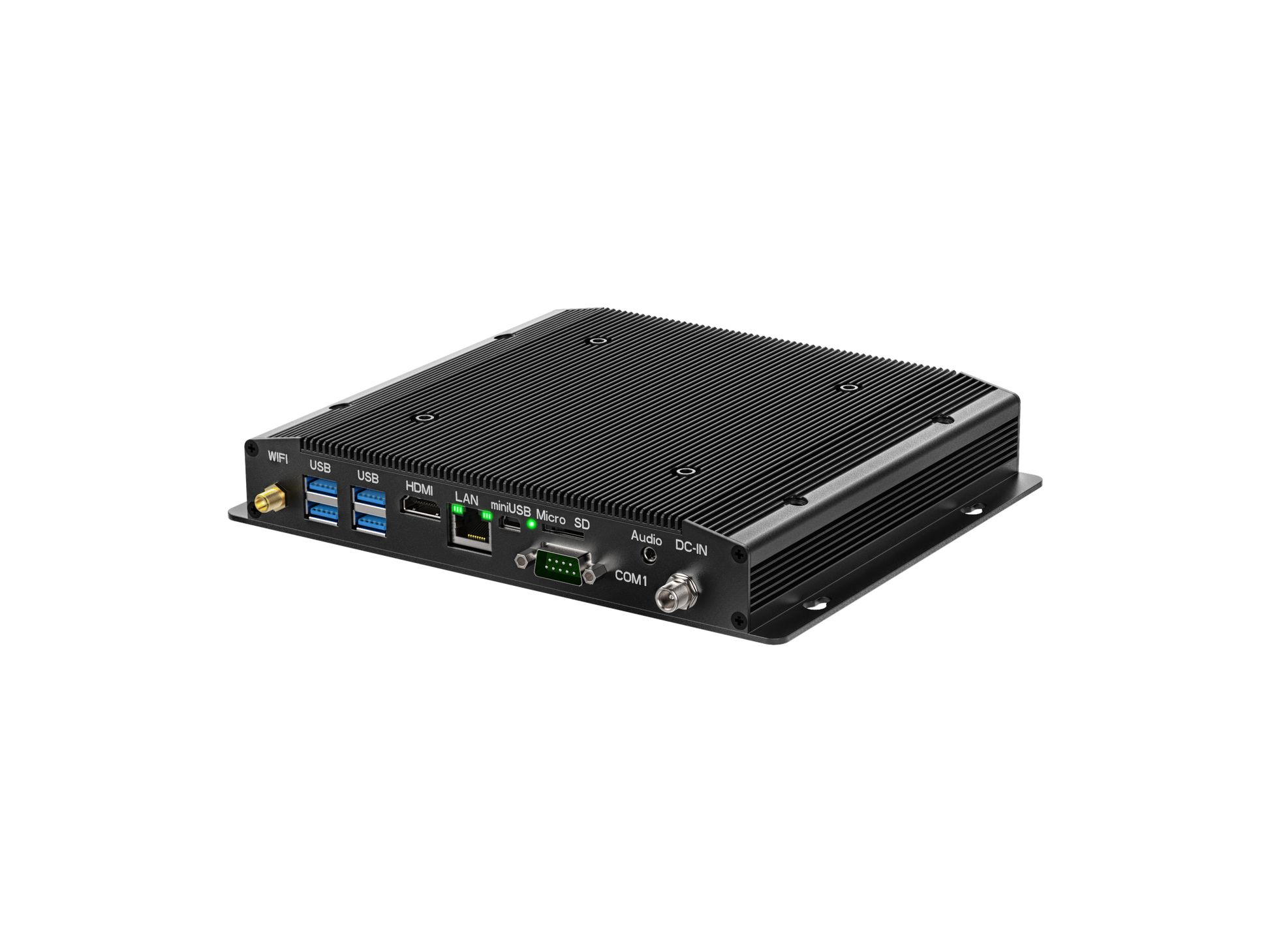

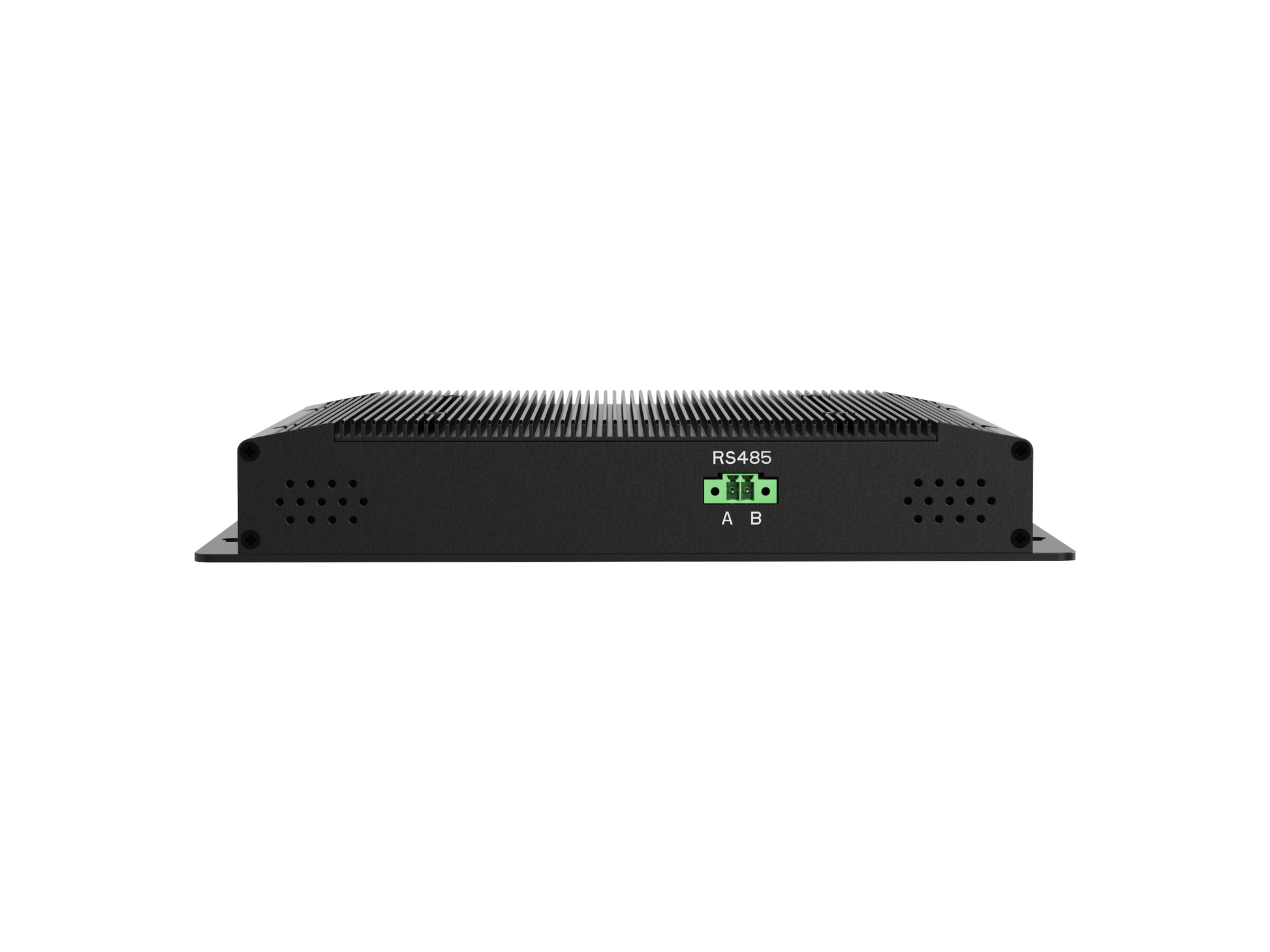

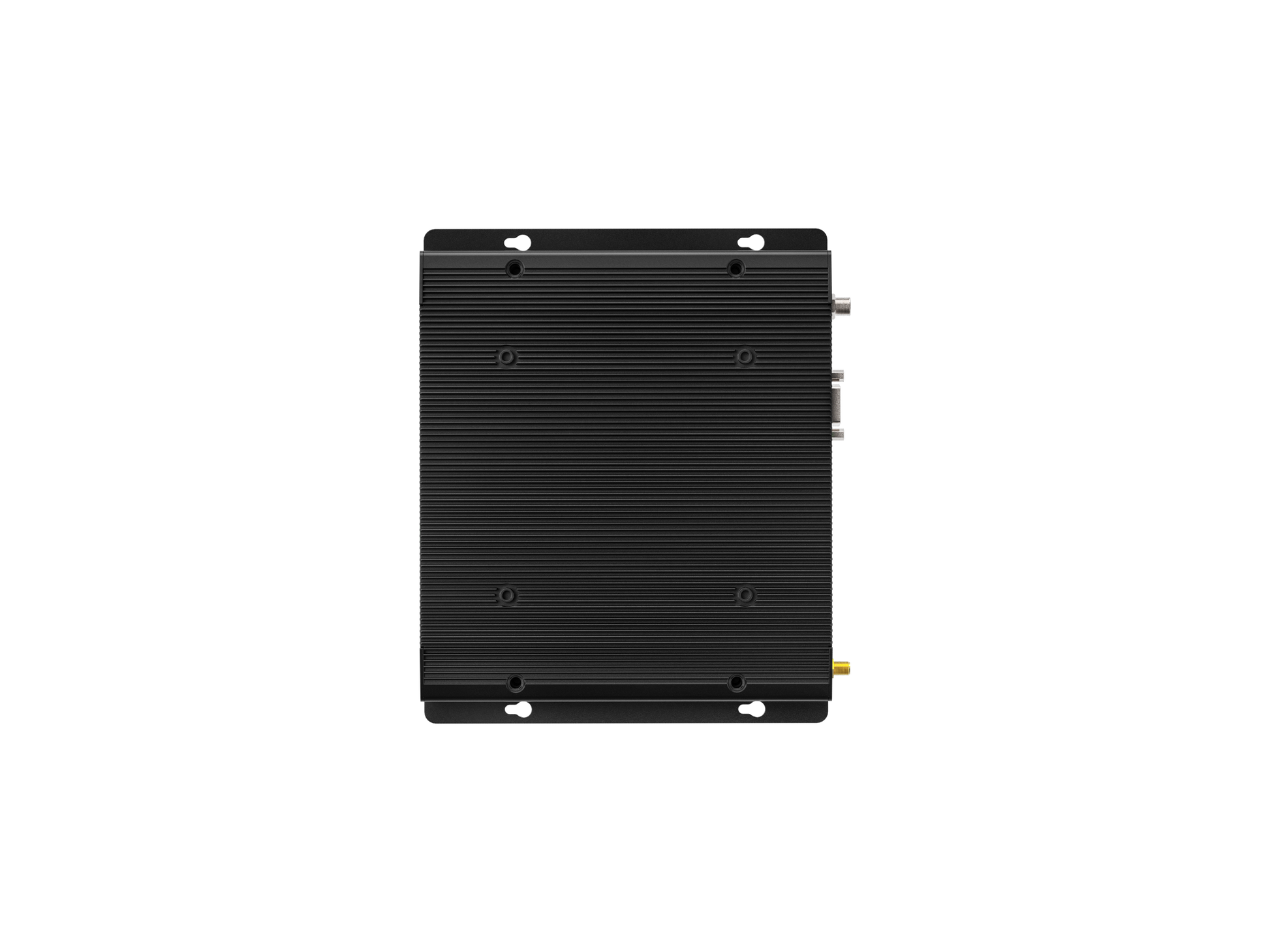

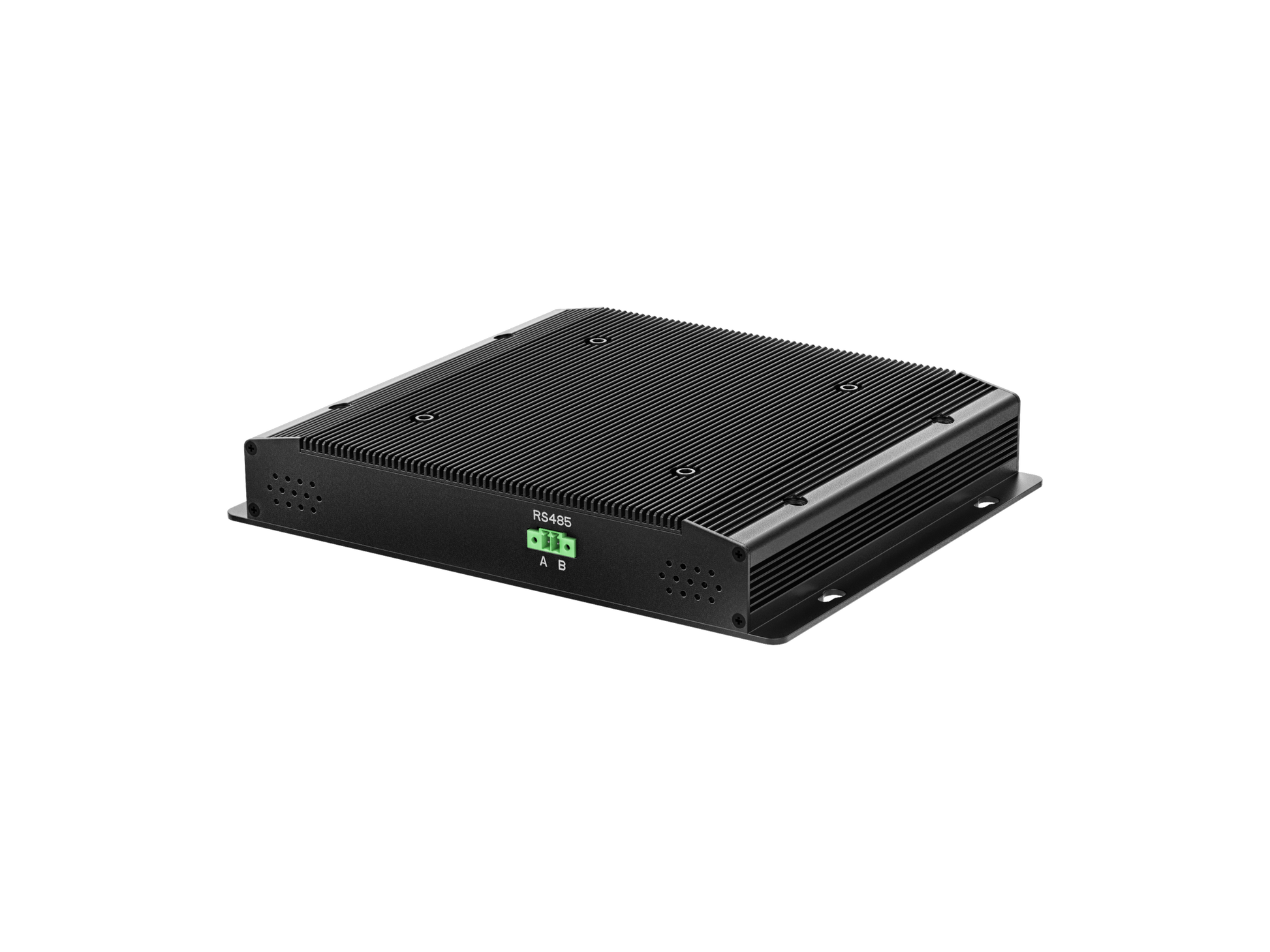

Industrial Box PC (ARM A311D)
Description
ARM-based Industrial PC (A311D)
IPCCBAA311DPR
The All-in-One IPCs comply with IP protection class IP40 and are operated with 9-36V DC voltage. Coming without a front kit (touch display), they benefit all customers who only need an IPC or want to combine it with their own touch devices.
This Industrial PC is powered by faytech's Amlogic A311D mainboard. It is driven by the powerful Quad-Core Cortex-A73 + Dual-core Cortex-A53 processor with NPU of 5.0 Tops (also available with S905D3). This version is equipped with 4 GB RAM, 64 GB eMMC and Mali G52 MP4 GPU.
These faytech IPCs are the perfect choice for a wide variety of applications including POS systems, control panels in industrial fields, in kiosk systems, office/residence automation, digital signage and in areas like shopping malls, classrooms, hotels and many more.
- Amlogic A311D: Quad-Core Cortex-A73 + Dual-core Cortex-A53
- 4 GB RAM LPDDR4 memory, 64 GB eMMC 5.1
- Pre-installed Android 9 Operating System
- Also supports Linux Ubuntu 22.4, Debian 12
- NPU of 5.0 Tops for high AI performance
- Large version back kit (9-36V DC-in)
- 2 years guarantee (24/7 usage)
PC SYSTEM (ARM)

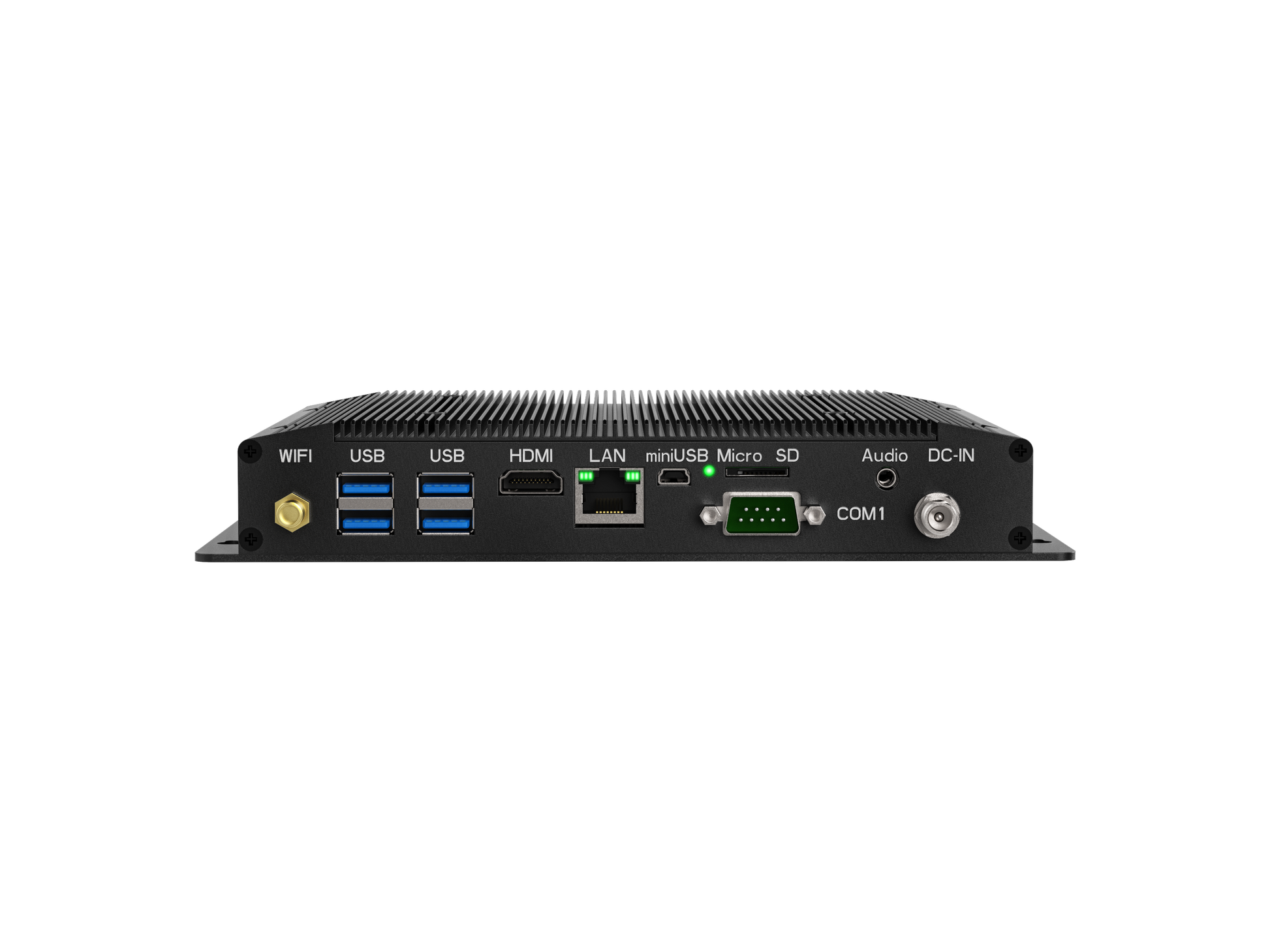

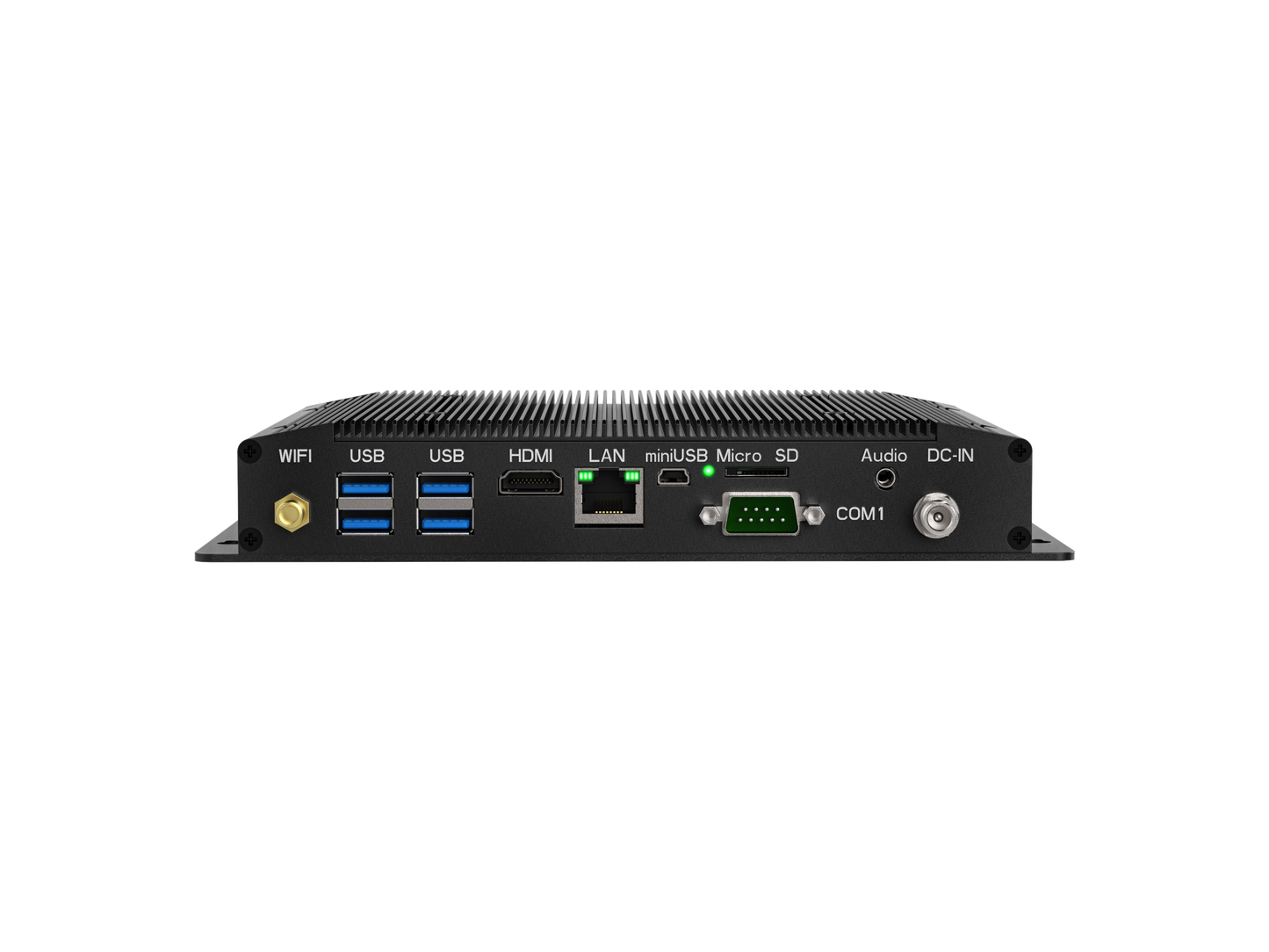

| Connectors | HDMI, Audio In / Out, USB 2.0 (x4), USB OTG, LAN RJ45, Serial RS232, Serial RS485, SD card slot, DC-In |
| Wi-Fi + BT | RTL8821 + BT4.0 |
| Loudspeaker | 2× 2W |
| NPU | 5.0 TOPS |
| GPU | Mali G52 MP4 |
| EMMC Size | 64 GB |
| RAM Size | 4 GB |
| OS Available on Request | Linux Ubuntu 22.4, Debian 12 |
| Standard Operating System | Android 9.0 |
| Processor | Amlogic A311D: Quad-Core Cortex-A73 + Dual-core Cortex-A53 |
ENVIRONMENTAL CONDITIONS
| Humidity Range | 10% to 90% |
| Storage Temperature | -20°C to 60°C |
| Operation Temperature | -10°C to 60°C |
CERTIFICATIONS
| Certifications | CE, FCC |
CHASSIS
| Mounting | VESA 100 / Keyhole suspension (200×100 mm) |
| Case size L × W × H [mm] | 212.0 × 173.2 × 34.0 |
| Case Material | Aluminum |
| Case Finish | None |
| Case Coating | Powder Coating |
| Case Color | RAL9004 (Black) |
| IP Protection | IP40 |
| Case Size | Large |
ACCESSORIES
| Other Accessories | Wi-Fi Antenna, Short Instruction Manual |
| Power Adapter | 100-240V ACDC active switching: 12V DC-Out |
POWER
| Stand-By Consumption | <1 |
| Power Consumption | 6.4 |
| Working Power | 9-36 |
| Power Indicator | Green LED |
WEIGHT & PACKAGING
| Packaging Size L × W × H [mm] | 255.0 × 312.0 × 41.0 |
| Packaging Material | 100% recyclable cardboard and polyethylene (PE) |
| Gross Weight | 3.20 |
| Net Weight | 2.20 |
